HIXIH 11R22.5 16PR HD75 Drive | TRH406
HIXIH 11R22.5 16PR HD75 Drive | TRH406
Out of stock
Regular price
$455.00 USD
Regular price
Sale price
$455.00 USD
Unit price
/
per
Couldn't load pickup availability

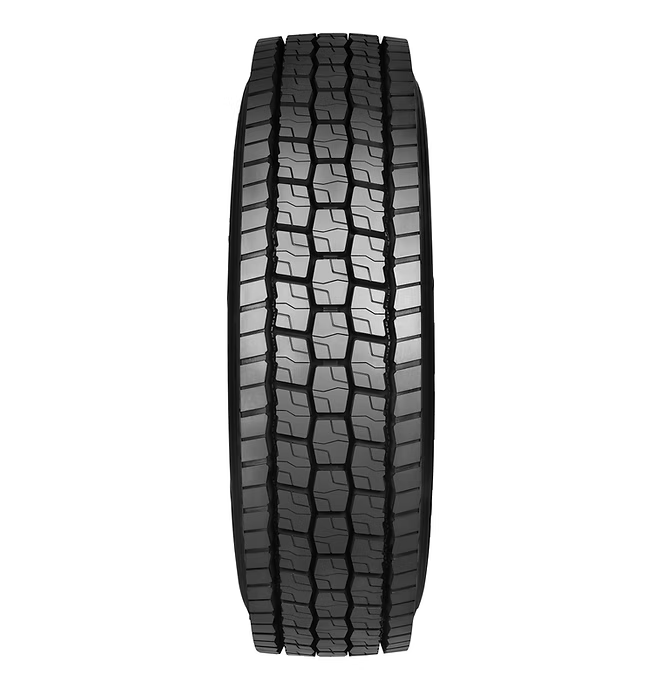

Four longtitudinal and lateral grooves design, provide superior driving and wet grip performance, safe, comfortable and fuel efficient
Deepened pattern design, optimized crown profile, superior service life, cost-effective
Low heat generation, superior tensile casing steel cord structure design, superior durability, retreadability
HD75 Specification
| Size | Load Range | Ply Rating |
Tire Depth (32nds) |
Tire Weight (lb) |
Standard Inflation Pressure (kPa) |
|---|---|---|---|---|---|
| 11R22.5 | G | 14 | 28 | 134 | 720 |
| 11R22.5 | H | 16 | 28 | 134 | 830 |
| 11R24.5 | G | 14 | 28 | 141 | 720 |
| 11R24.5 | H | 16 | 28 | 141 | 830 |
| 285/75R24.5 | G | 14 | 28 | 134 | 760 |
| 285/75R24.5 | H | 16 | 28 | 134 | 830 |
| 295/75R22.5 | G | 14 | 28 | 128 | 760 |
| 295/75R22.5 | H | 16 | 28 | 128 | 830 |
Additional Information
| Size |
Load Range |
Max. Load Kg (Single/ Dual) |
Load Index (Single/ Dual) |
Speed Rating |
Overall Diameter (mm) |
Section Width (mm) |
Standard Inflation Pressure (kPa) |
Standard Rim (inch) |
|---|---|---|---|---|---|---|---|---|
| 11R22.5 | G | 2800/2650 | 144/142 | L | 1065 | 279 | 720 | 8.25 |
| 11R22.5 | H | 3000/2725 | 146/143 | L | 1065 | 279 | 830 | 8.25 |
| 11R24.5 | G | 3000/2725 | 146/143 | L | 1116 | 279 | 720 | 8.25 |
| 11R24.5 | H | 3250/3000 | 149/146 | L | 1116 | 279 | 830 | 8.25 |
| 285/75R24.5 | G | 2800/2575 | 144/141 | L | 1056 | 283 | 760 | 8.25 |
| 285/75R24.5 | H | 3075/2800 | 147/144 | L | 1056 | 283 | 830 | 8.25 |
| 295/75R22.5 | G | 2800/2575 | 144/141 | L | 1030 | 293 | 760 | 9.00 |
| 295/75R22.5 | H | 3000/2725 | 146/143 | L | 1030 | 293 | 830 | 9.00 |
